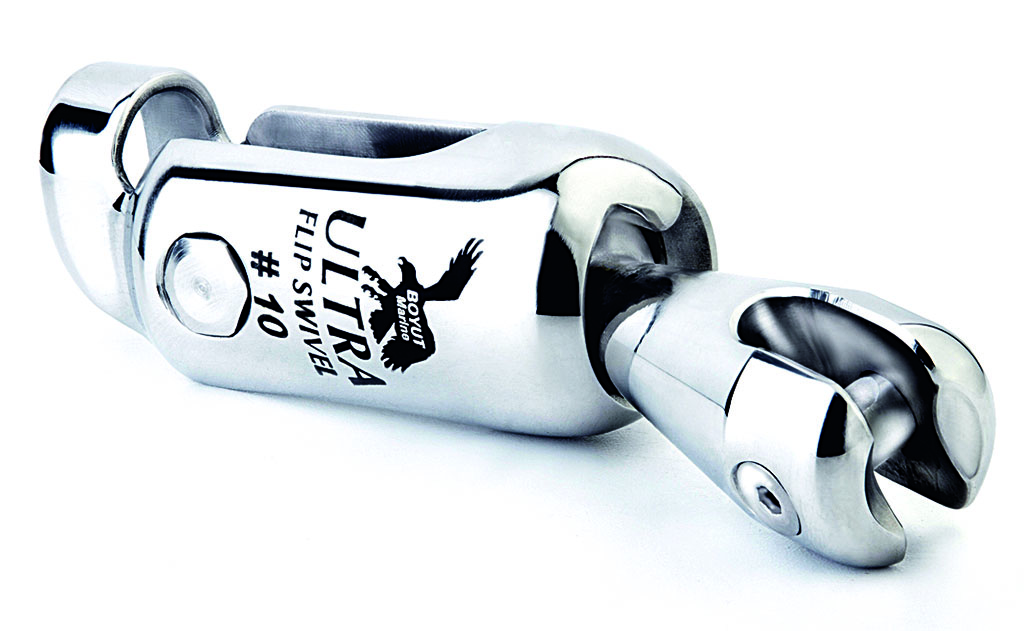

Ultra Flip Swivel Stainless Steel

SKU: 00241-08 Category: Product ID: 30412

Description

ULTRA FLIP SWIVEL STAINLESS STEELThe ULTRA Flip Swivel is a uniquely fabricated anchor swivel, connecting the chain and the anchor without the need of additional shackles. Fabricated from 316 stainless steel and hand polished for stunning presentation on the bow, the ULTRA Flip Swivel is uniquely strong, slim line and does not require any locking pins or safety wires.The breaking strength of the swivel is typically higher than the chain connected and allows 30 degree rotation with complete 360 degree swivel. The high breaking load has been certified by the Inspection Body RINA. The ULTRA Flip Swivel is fabricated with a unique flipping nub and rear bridge; assisting to recover the anchor right-way up onto the bow roller. Flipping nub, combined with the rear bridge and ULTRA Flip Swivel’s rotation and complete 360 degree swivel ability, ensures setting and recovering your anchor is an easier and safer task. Three year warranty. Spherical jointed to every direction. It is not casted therefore it is not fragile. Made of quality massive stainless steel 316 in one piece by processing.

Additional information

Βάρος Άγκυρας

12 kg, 60 kg, 35 kg, 100 kg, 21 kg

Για Διάμετρο Αλυσίδας mm

6, 10 – 13, 8-10, 12-16, 6-8

Διαστάσεις Γέφυρας G x H (mm)

14 x 17, 26,5 x 30, 21 x 22,5, 33 x 36, 18,5 x 20

Διαστάσεις στριφταριού B x C x D x E x F mm

35 x 16 x 11 x 13 x 31, 55 x 26 x 18 x 23 x 51,5, 45 x 21 x 14.5 x 18 x 40, 65 x 31 x 22 x 27 x 59, 40 x 19 x 13 x 16 x 36.5

Διαστάσεις Συνδέσμου Αλυσίδας B x C x D x E x F (mm)

25 x 7,6 x 7 x 9 x 11, 45 x 15,2 x 14,5 x 16,5 x 23, 35 x 11,6 x 11 x 13 x 17, 53 x 18,2 x 18 x 20 x 27, 30 x 9,4 x 9 x 11 x 14,5

Μήκος Α mm

121, 211,5, 168, 25, 147.5

Όριο Θραύσης

3315 kg, 17510 kg, 8540 kg, 28950 kg, 5630 kg
