Description

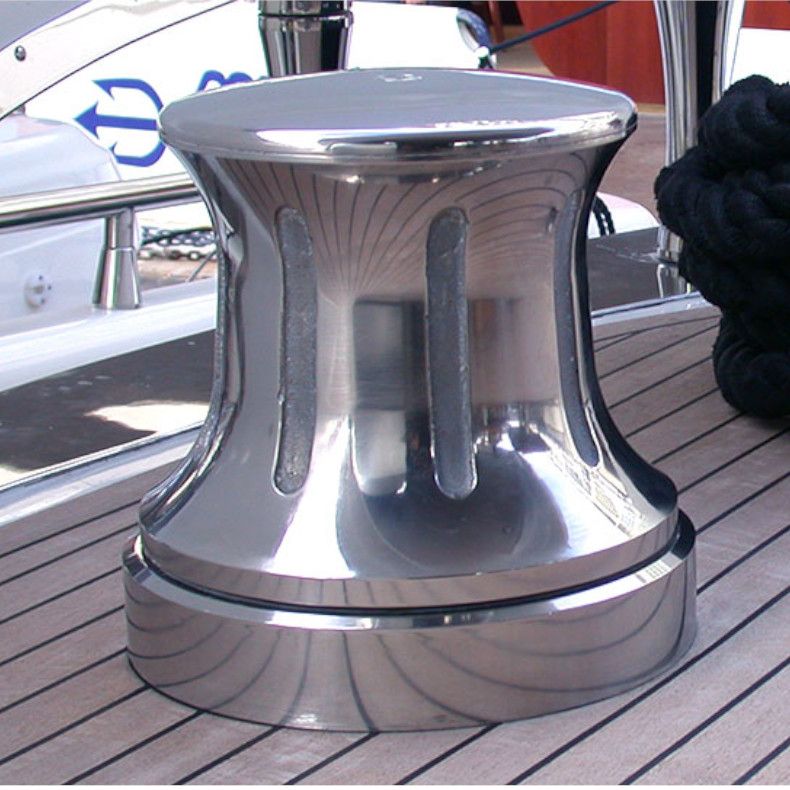

Sanguineti Chiavari Vertical electric capstans made of polished stainless steel. On request hydraulically driven.
Technical Data:
| Pr. Code | Volt | Power (Watt) |
Max Load (kg) |
Speed (m/min) |
A (mm) |
B (mm) |
C (mm) |
Ø D (mm) |
Ø F (mm) |
Ø G (mm) |
I (mm) |
N (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XYCE3710800 | 12 | 1.000 | 450 | 5 | 205 | 80 | 170 | 212 | 110 | 50 | 415 | 20 | 30 |
| XYCE3710900 | 24 | 1.000 | 450 | 5 | 205 | 80 | 170 | 212 | 110 | 50 | 415 | 20 | 30 |
| XYCE3711000 | 230/400 3PH | 1.000 | 450 | 5 | 205 | 80 | 170 | 212 | 110 | 50 | 415 | 20 | 34 |
| XYCE3720200 | 24 | 2.000 | 1.200 | 5 | 190 | 100 | 236 | 280 | 145 | 50 | 450 | 30 | 45 |
| XYCE3720300 | 230/400 3PH | 2.000 | 1.200 | 5 | 195 | 100 | 236 | 280 | 145 | 50 | 440 | 30 | 45 |
| XYCE3730100 | 24 | 3.000 | 2.000 | 7 | 440 | 150 | 316 | 320 | 197 | 90 | 520 | 85 | 104 |
| XYCE3740100 | 230/400 3PH | 4.000 | 2.400 | 7 | 440 | 150 | 316 | 320 | 197 | 90 | 580 | 85 | 112 |
