Description

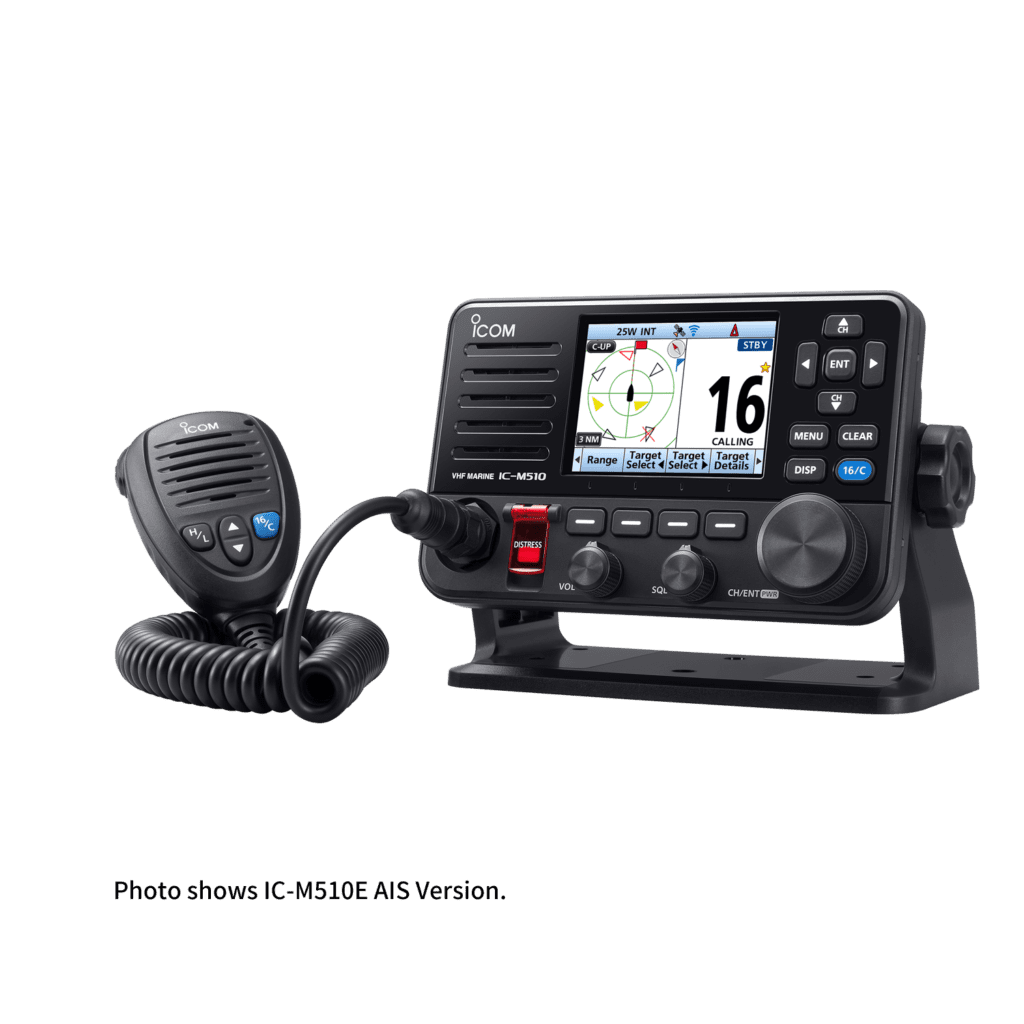

Radio control & intercom via your smart device (PHONE, TABLET, ETC.) Use the RS-M500 app (for iOS™/Android™) to remotely control the IC-M510E via WLAN
Up to three smart devices can be used as a wireless microphone or remote control in place of a single microphone.
The intercom function between your smart device and the transceiver is also available.
Built-in AIS receiver*
With the built-in AIS receiver* or the external NMEA proposal (third-party AIS receiver), the IC-M510E can display real-time vessel traffic information on the screen.
You can directly make a DSC call to selected AIS targets from the AIS screen.
Depending on the transceiver version the AIS receiver is not included.
Color TFT LCD screen and Wide viewing angle
The TFT LCD color screen provides a viewing angle of almost 180 degrees.
The wide screen has high-resolution characters and function icons.
The night mode display ensures good readability in low light conditions.
New elegant design
The IC-M510E is slim (depth: 53.6mm) and easy to install on your boat.
Its brand new sleek design is suitable for either panel mounting or stand mounting.
Simplified navigation mode
The navigation function guides you to a designated waypoint or AIS target.
It can store up to 100 destinations in memory.
Provides clear and powerful sound
The IC-M510E’s internal speaker enhances the received sound.
The waterproof speaker delivers superior sound quality with a wide frequency range for powerful, clear sound.
Built-in Noise Isolation Mode reduces background noise by up to 90% and improves both voice transmission and incoming call.
Interface BOX for NMEA 2000™ and Hailer
The optional CT-M500 wireless interface box provides NMEA 2000™ connectivity and two-way Hailer/PA functionality.
CT-M500 and transceiver can be connected via WLAN.
This separate interface option allows flexibility to position the unit closer to the NMEA network connection point.
Built-in DSC
The transceiver continuously monitors CH 70, even when you are receiving another channel.
The IC-M510E has DSC functions: Distress, Group, All Ships, Individual, Safety and DSC Control.
AIS target call with MA-510TR
When connected to the optional MA-510TR Class B AIS transponder, the AIS target call function allows you to make a single DSC call without having to manually enter an MMSI number.
Built-in GPS receiver
Built-in GPS receiver shows current position, date/time and can be used for DSC calls.
The GPS data source is selectable from internal and external GPS.
(Possibility to choose from either internal receiver or use optional UX-241 GNSS antenna)
Optional COMMANDMIC™ HM-195GB/GW or HM-229
The optional COMMANDMIC microphone makes it convenient to use the IC-M510E from a separate booth.
All functions of the IC-M510E can be controlled from the COMMANDMIC.
Made in Japan Quality and reliability
All Icom products are checked to pass rigorous internal testing as well as environmental testing at the Wakayama Icom factory before shipment. Our world leading products and quality is a tradition.
More
– IP68 waterproof protection (1 m water depth for 60 minutes)
– Dual watch Tri-watch function
– Direct access to Ch16 and the call channel
– Favorite channel function
– Auto scan function
– AquaQuake drainage function
– Ability to connect to an external speaker
– Voice Scrambler with optional UT-112A
